Two interconnected points of rotation

[Oleg Pirogov]

It can be done with an iteration algorithm:
https://www.youtube.com/watch?v=5R-GqLtYOJ4

In my implementation the rod is attached to Arms 1 and 2 at Nulls 1 and 2;
Arm 2 is Input.
Arm 1 is Fuel.

This expression for Arm 1 Rotation approximates the Rotation Angle of Arm 1 till the distance between attachment points [almost] equals the length of the Rod:

//computes the difference between (target) Rod's length and a length you get when dependent Arm's rotation is alpha
var deltaRodLength = function(alpha){
//Arm 1 radius
R1 = thisComp.layer("Animation Controls").effect("D1")("Slider")/ 2;
arm1 = thisComp.layer("Arm 1");
arm2 = thisComp.layer("Arm 2");
//point at which Rode is attached to Arm 2
null2Pos = arm2.toWorld(thisComp.layer("Null 2").position);

//Rode length
targetRodLength = thisComp.layer("Animation Controls").effect("Rod Length")("Slider");
currentRodLength = length([R1*Math.cos(alpha), -R1*Math.sin(alpha)]+arm1.position, null2Pos);

return currentRodLength - targetRodLength;
}

a = 0
b = Math.PI;
err = 0.001

//iteration algo
i=0
while (Math.abs(deltaRodLength((a+b)/ 2)) >=err){
if (deltaRodLength((a+b)/ 2) > 0){b = (a+b)/ 2;}
if (deltaRodLength((a+b)/ 2) < 0){a = (a+b)/ 2;}
if (deltaRodLength((a+b)/ 2) == 0){
a = (a+b)/ 2;
b = (a+b)/ 2;
}

//this prevents AE from freezing when no solution exists
i++;
if (i>200) {break;};
}

-radiansToDegrees((a+b)/ 2);

Surprisingly neat expression.
Of cause, it can also been done with an explicit trigonometric formula for the Fuel Arm angle, but it’s quite hideous.

Some contents or functionalities here are not available due to your cookie preferences!

This happens because the functionality/content marked as “Google Youtube” uses cookies that you choosed to keep disabled. In order to view this content or use this functionality, please enable cookies: click here to open your cookie preferences.

[George Umanov]

Although I haven’t been able to modify your expression to work correctly in my composition (yet), I’m really impressed with how quickly you came up with that! Thank you!

I modified it to try to make it work with my layer names and dimensions, but I can’t figure it out.

Here’s what I have so far:

Arm 1 = “FCU arm”
Arm 2 = “Cam input arm”

Rod attaches to FCU arm (arm1) at Null 1 (“Interconnect Point A – pivot”)
Road attaches to Cam input arm (arm2) at Null 2 (“Interconnect Point B – pivot”)

Parenting:
Null 1 parent is FCU arm
Null 2 parent is Cam input arm

Rod position expression:
B = thisComp.layer(“Interconnect Point B – pivot”);
B.toWorld(B.anchorPoint);

Null 3 (“Rod Point C”) is parented to the rod (where it attaches to FCU arm (arm1).
Used to calculate rod length.

Photo below:

Link to AE file below, if you want to have a closer look
https://curious.ninja/wp-content/uploads/misc/FCU_Interconnect_folder.zip

Appreciate any further help,
Thank you

//computes the difference between (target) Rod's length and a length you get when dependent Arm's rotation is alpha
var deltaRodLength = function(alpha){
arm1 = thisComp.layer("FCU arm");
arm2 = thisComp.layer("Cam input arm");
rod = thisComp.layer("FCU Interconnect rod");
//point at which Rod is attached to Arm 1
null1Pos = arm1.toWorld(thisComp.layer("Interconnect Point A - pivot").position);
//point at which Rod is attached to Arm 2
null2Pos = arm2.toWorld(thisComp.layer("Interconnect Point B - pivot").position);
//point at which Rod is attached to Arm 1, parented to rod
null3Pos = rod.toWorld(thisComp.layer("Rod Point C").position);
//Arm 1 radius
R1 = length(thisComp.layer("FCU arm").position, null1Pos);

//Rod length
targetRodLength = length(null3Pos, null2Pos);
currentRodLength = length([R1*Math.cos(alpha), -R1*Math.sin(alpha)]+arm1.position, null2Pos);

return currentRodLength - targetRodLength;
}

a = 0
b = Math.PI;
err = 0.001

//iteration algo
i=0
while (Math.abs(deltaRodLength((a+b)/ 2)) >=err){
if (deltaRodLength((a+b)/ 2) > 0){b = (a+b)/ 2;}
if (deltaRodLength((a+b)/ 2) &lt; 0){a = (a+b)/ 2;}
if (deltaRodLength((a+b)/ 2) == 0){
a = (a+b)/ 2;
b = (a+b)/ 2;
}

//this prevents AE from freezing when no solution exists
i++;
if (i>200) {break;};
}

-radiansToDegrees((a+b)/ 2)+119.8;

[Oleg Pirogov]

The implementation is generally fine as is.
If you put the Rod layer (“FCU Interconnect Rod”) beneath the FCU arm layer, it will work like intended, as I presume:

https://www.youtube.com/watch?v=ZLkF7eAffhw

Switching layers’ order is not a proper solution though, the problem is that you have a cross reference:

Rod -(expression)-> A
A -(child)-> FCU arm
FCU arm -(expression)-> C
C -(child) -> Rod

Rod -(expression)-> A -(child)-> FCU arm -(expression)-> C -(child) -> Rod

In this case Gd only knows in what order AE will render and what output you’ll get.

If Rod is above FCU arm you get this:

If Rod is below FCU arm you (may) get:

The Rod image is in the right place but null and source rectangle are not.
This can be cured by cache cleaning but may also lead to various bugs in the future.

Bottom line, you would probably wanna find another way to define the Rod length (maybe just a constant), thus breaking the reference loop at C-point. Namely, getting rid of this reference:
//point at which Rod is attached to Arm 1, parented to rod
null3Pos = rod.toWorld(thisComp.layer("Rod Point C").position);

Some contents or functionalities here are not available due to your cookie preferences!

This happens because the functionality/content marked as “Google Youtube” uses cookies that you choosed to keep disabled. In order to view this content or use this functionality, please enable cookies: click here to open your cookie preferences.

[George Umanov]

Oleg,

Thank you much for the help! I got that interconnect working with your expressions and suggestions.
I decided to use the constant rod length.

I am using your same method to rotate another 3rd lever, attached to the FCU arm. Still needs some tweaking, but I’m very close!
AE Files:
https://curious.ninja/wp-content/uploads/misc/Overcenter-interconnect.zip

If you rotate the green “cam input lever” you can see how it works so far.
Seems to rotate the 3rd lever only after 30 degrees on the green arm.

[Oleg Pirogov]

I see you’ve switched to AE CC 2019. Bear in mind that it has an updated expression engine and is much more strict on syntax and
I’ve only tested this code in previous versions. Though, I believe, I was careful with syntax, still some issues may rise when running this code in CC 2019.

[George Umanov]

Hi Oleg,

Apologies for bringing back such an old thread, but I wanted to give this another attempt – I never did get that second lever working properly. The second lever only rotates after approximately +29 degrees of input from the main input arm.

In following images, the green path is the “rod”.

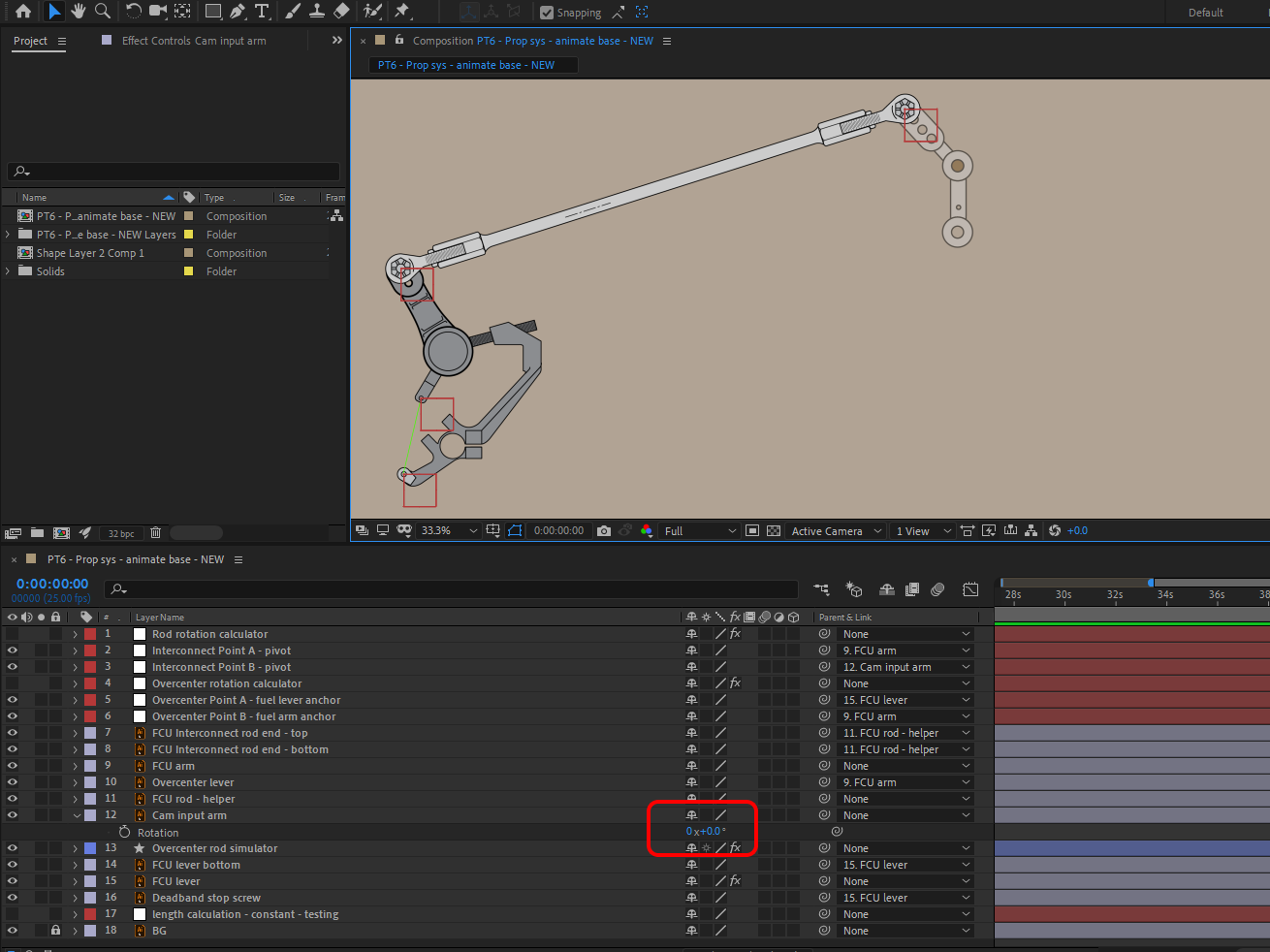

0 degrees:

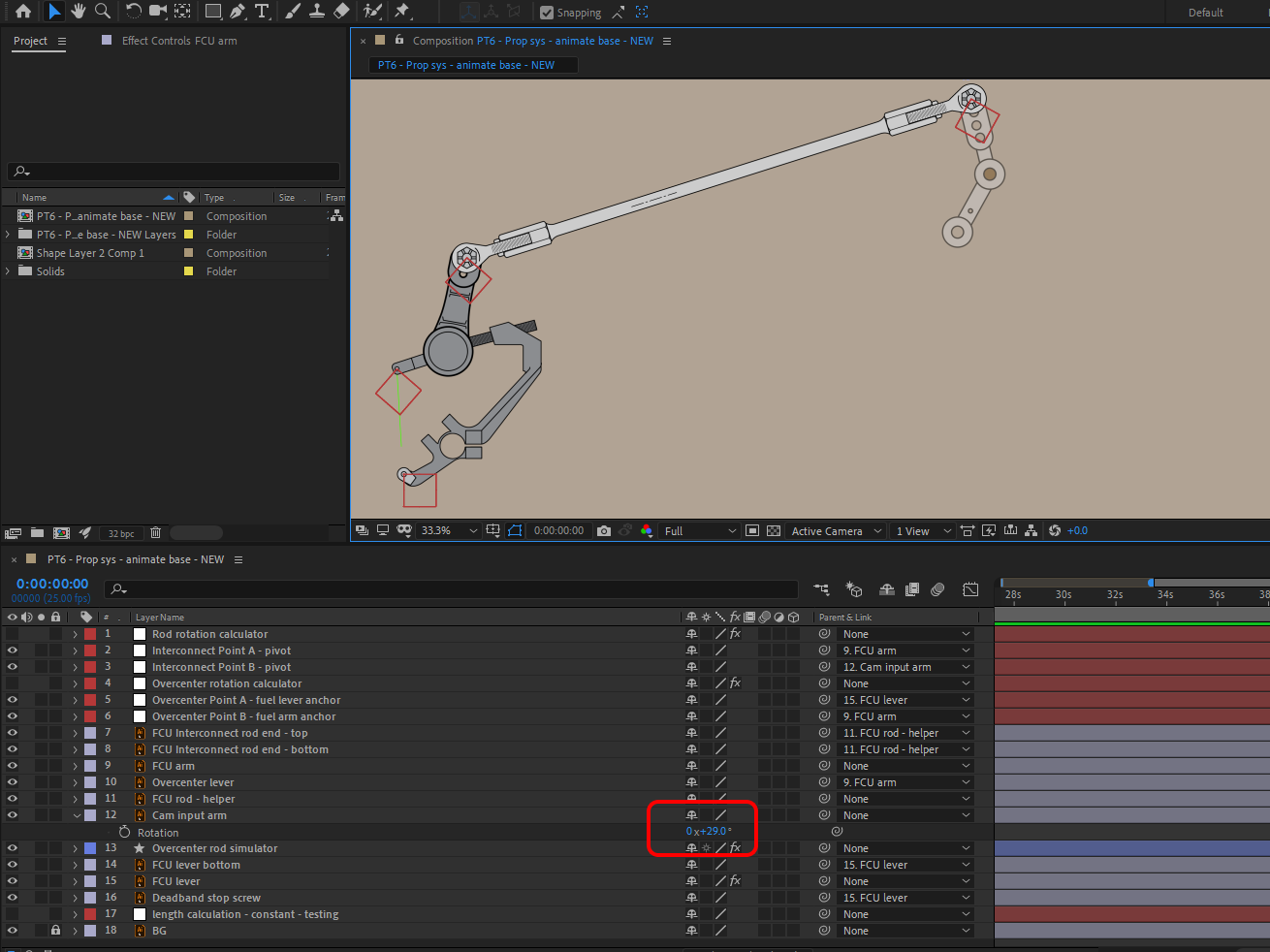

29 degrees

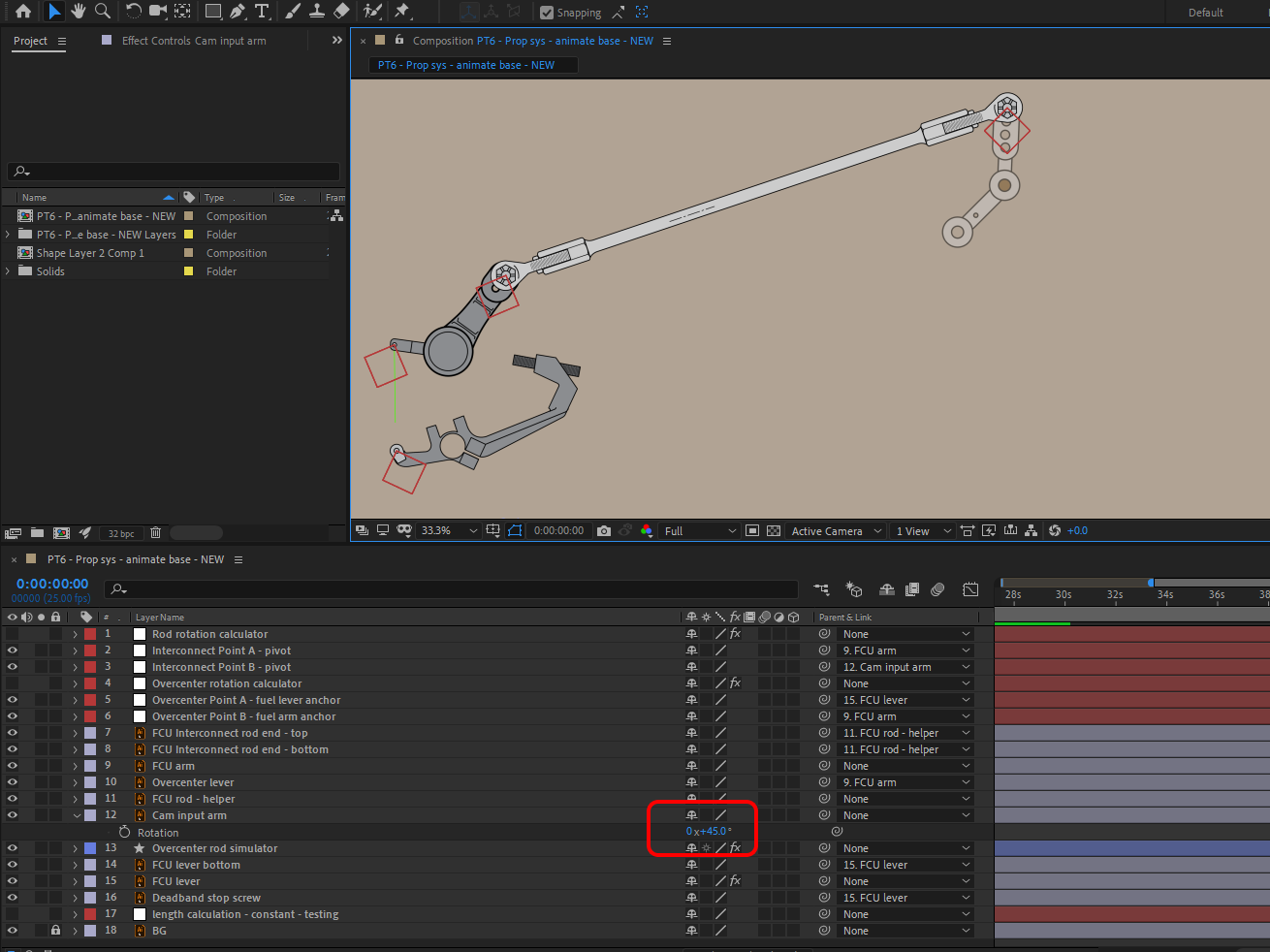

45 degrees

What do you think is the cause of the gap between 0 and 29 degrees?
Appreciate any help, thank you!

Below are the project files in CC 2019:
https://curious.ninja/wp-content/uploads/misc/CC2019Overcenter-interconnect-lever.zip

I can add the CC 2018 version if needed..

//computes the difference between (target) Rod's length and a length you get when dependent Arm's rotation is alpha
